51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Pull off edge protection (1) in area of trim strip (2).

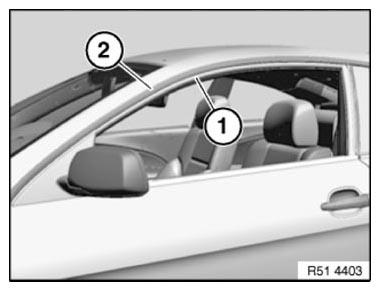

Fig 1: Identifying Roof Edge Protection And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly pull gasket (1) out of trim strip (2) and release screw (3).

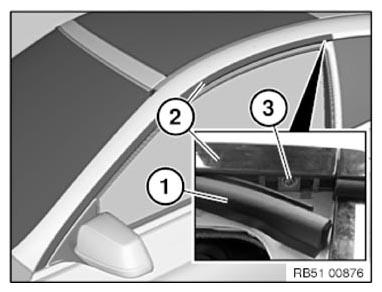

Fig 2: Identifying Gasket, Screw, And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage.
Do not unclip trim strip upwards (1) in area (A).

Pull off trim strip (1) from clamps (2) in direction of arrow starting at the front.

Pull off trim strip (1) from rear trim strip in direction of travel in area (A).

Installation note:

To avoid leaks and noises, check all clips (2) for visible damage.

If necessary, replace faulty clamps (2).

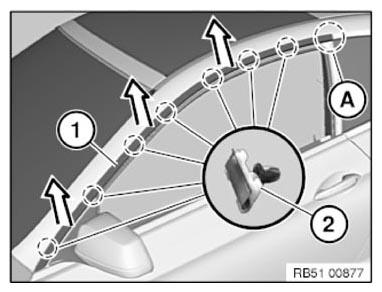

Fig 3: Pulling Trim Strip From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Firstly slide trim strip (1) in area (A) into rear trim strip.

Trim strip (1) must be free of gaps to rear trim strip in area (A).

Installation note:

Make sure gasket (1) and welt (2) are correctly seated on trim strip (3).

Gasket (1) and welt (2) must not be damaged.

Replacement:

If necessary, modify gasket (1 and 2).

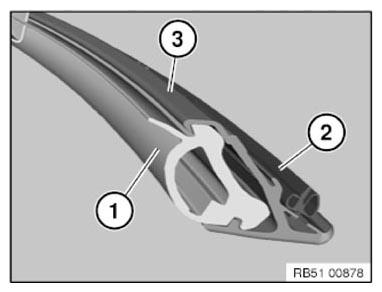

Fig 4: Identifying Trim Strip, Gaskets, And Welt

Courtesy of BMW OF NORTH AMERICA, INC.
