51 47 066 Removing and installing/replacing illuminated rocker panel trim on front left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Release ROCKER PANEL TRIM AT FRONT (watch out for wiring)
Remove FRONT DOOR SILL COVER STRIP

Detach edge protection (3) in area of entrance cable duct (4).

Pull off adhesive tape (2) for fixing cable (1) and slip cable (1) out of cable duct (4).

Installation note:

Re-secure cable (1) with adhesive tape (2).

Close off entrance cable duct (4) again so it is watertight.

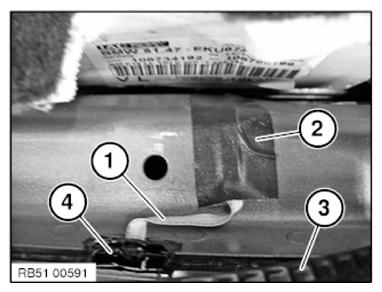

Fig 1: Identifying Adhesive Tape, Edge Protection, Cable, And Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Slip out cable and set down illuminated rocker panel trim.

Installation note:

Check lighting function.

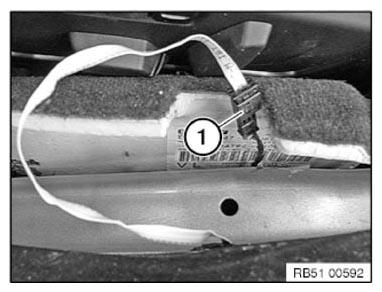

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
