51 41... Removing and installing/replacing switch cover on front (driver's side) left or right door trim panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Removal and installation are described separately.

Necessary preliminary work:

Remove DOOR TRIM PANEL

Removal:

Release screws (2) and clamps (1).

Release screws (3) and remove clamps (4).

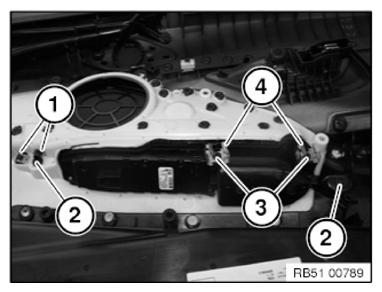

Fig 1: Identifying Screws And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better schematic diagram, graphic is shown with removed power window regulator switch.

Release clamp (1).

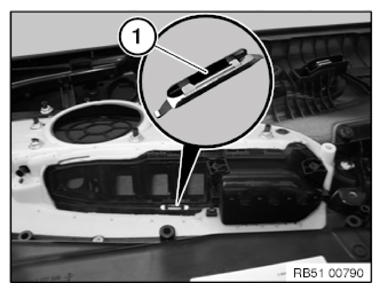

Fig 2: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Mask off door trim panel in area of switch cover (1) with adhesive tape (2).

Unclip switch cover (1) starting at front.

NOTE: In the rear area, the removal of the switch cover (1) can be more difficult due to the extra guide (3).

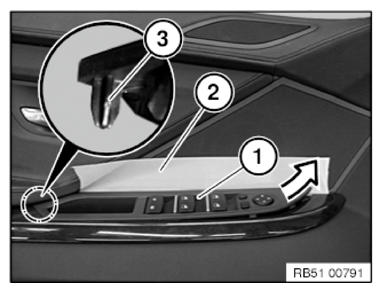

Fig 3: Removing Switch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Release switch for power window regulator (1) at both sides of latch mechanisms (2) and remove from switch cover (3).

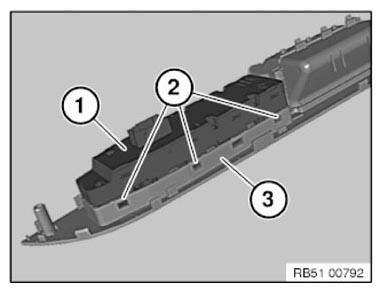

Fig 4: Identifying Power Window Regulator, Latch Mechanisms And Switch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For better installation, switch cover must be worked.

Remove guide (1).

Shorten guide (2) along line (A).

Installation note:

Remaining guides and latch mechanisms must not be damaged.

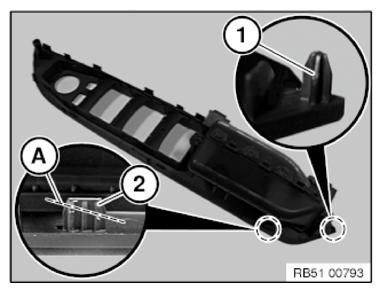

Fig 5: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Feed switch cover (1) in rear area under armrest (2).

Slide switch cover (1) in direction of arrow and clip in.

Installation note:

Make sure all guides and latch mechanisms are correctly fitted.

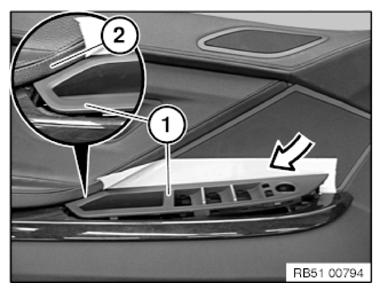

Fig 6: Installing Switch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Attach clamp (1).

Fig 7: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Install switch for power window regulator.

Tighten down screws (2).

Tightening torque 51 41 6AZ .

Attach clamps (1).

Secure clamps (4) with screws (3).

Fig 8: Identifying Screws And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
