51 21 301 Removing and installing/replacing weather strip on outside of front door
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The "INSTRUCTIONS ON INSTALLATION OF WINDOW GUIDES " serve as the basis for this repair instructions and must be observed without fail.
Necessary preliminary tasks:
- Remove MIRROR ON FRONT DOOR

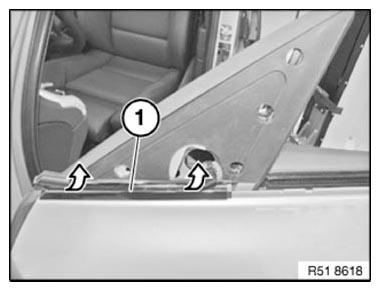

Carefully lever weather strip (1) out of door using special tool 00 9 322 .
Installation note:
Moisten weather strip (1) before installation with APPROVED LUBRICANT .
Weather strip (1) must be flush at front to door.

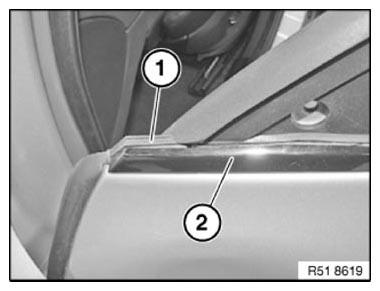

Window guide (1) must be flush under weather strip (2)
