51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 324

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

Attach fabric adhesive tape (2) beneath window cavity cover strip (1).

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Fig 1: Attaching Fabric Adhesive Tape Beneath Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In area (A) of cavity strip (1), cover door panel (2) with adhesive tape (risk of damage).

Insert cavity strip (1) in guide (3) and press on.

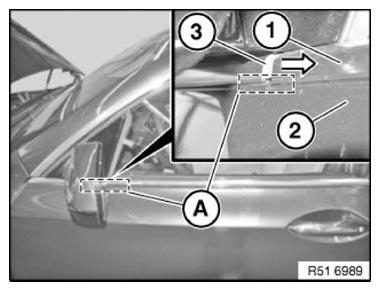

Fig 2: Covering Door Panel Area With Adhesive Tape And Inserting Cavity Strip

Courtesy of BMW OF NORTH AMERICA, INC.
