51 21... Removing weather strip with special tool 00 9 324 at front or rear

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Open side window completely.

Front door:

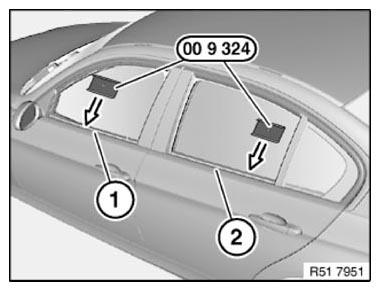

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

Fig 1: Inserting Special Tool (00 9 324) In Front/Rear Door Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

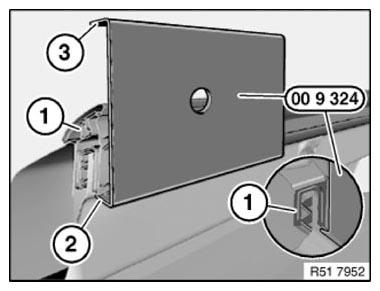

Special tool 00 9 324 must be correctly guided under weather strip (1).

(2) Short leg, bottom

(3) Long leg, top (TOP)

Fig 2: Identifying Proper Guiding Of Special Tool Under Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage.
Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

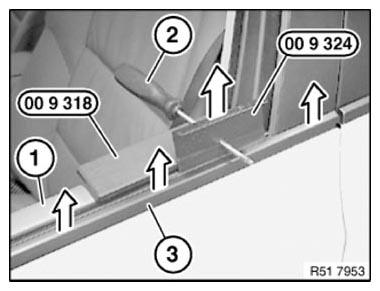

Position special tool 00 9 318 on door trim panel (1).

Push suitable tool (2) into the bore hole of special tool 00 9 324 and thus lever out the weather strip (3) maximum 5 mm in upward direction.

Guide special tools 00 9 324 and 00 9 318 forward or backward step by step until weather strip (3) is fully removed.

Fig 3: Removing Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.
