51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL

NOTE: Graphic is similar.

Lever out lock (1)

Pull off Bowden cable housing (2) towards rear/top - the Bowden cable feeds out of its own accord in the process.

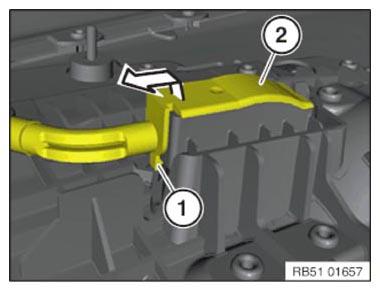

Fig 1: Pulling-Off Bowden Cable Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To install the Bowden cable, press inner door handle (1) in direction of arrow.

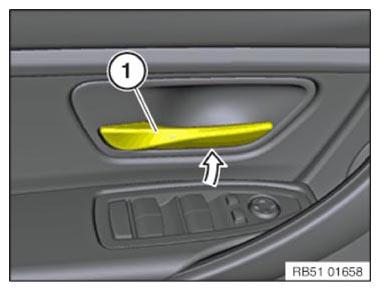

Fig 2: Pressing Inner Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
