51 21 126 Removing and installing/replacing support for left or right outer door handle without lock barrel

Necessary preliminary tasks:

• Remove OUTER DOOR HANDLE
• Partially remove SOUND INSULATION

Disconnect Bowden cable (2) at bottom and top from door lock at front door (3).

Installation note:

Bowden cable must be correctly engaged in locators in door lock (3).

Bowden cable must be laid without kinks in bend to door lock (3).

Bowden cable seal must be correctly fitted.

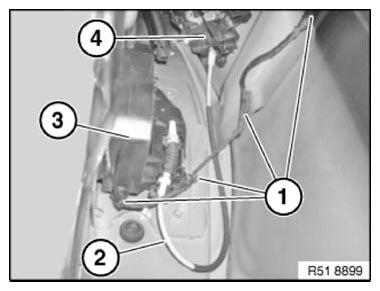

Fig 1: Identifying Bowden Cable, Door Lock, Carrier Plate, And Wiring Harness Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from cover (2).

Remove cover (2).

Installation note:

Insert rubber seal (3) correctly in guides on door outer skin.

Fig 2: Identifying Screw, Cover And Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining screw (1).

Remove plastic guide underneath.

Installation note:

Correctly insert retaining lug (2) and move to stop.

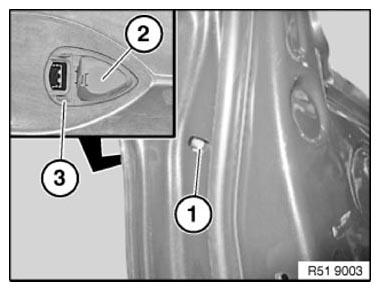

Fig 3: Identifying Retaining Lug And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

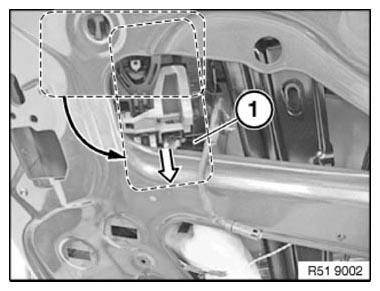

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation note:

Ensure correct Bowden cable installation position.

Fig 4: Removing Door Outside Handle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Feed Bowden cable (1) out of carrier (2).

Installation note:

Make sure Bowden cable (1) is correctly fitted on support (2).

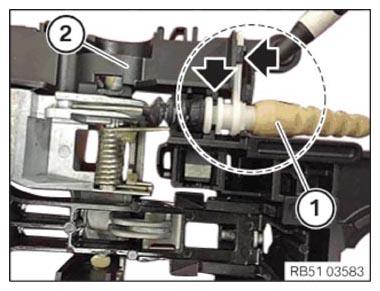

Fig 5: Removing/Installing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
