51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove OUTER DOOR HANDLE
Remove DOOR LOCK

Release screw (1) on cap (2).

Remove cap (2).

Installation note:

Rubber seal (3) must sit correctly in guides on door outer skin.

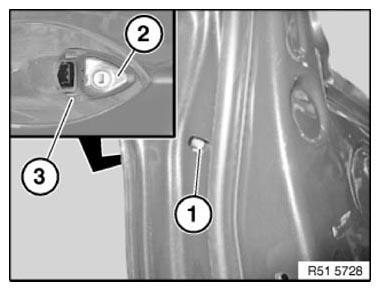

Fig 1: Identifying Screw, Cap, And Rubber Seal

G10062752

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining screw (1).

Remove plastic guide underneath.

Installation note:

Correctly insert retaining lug (2) and move to stop.

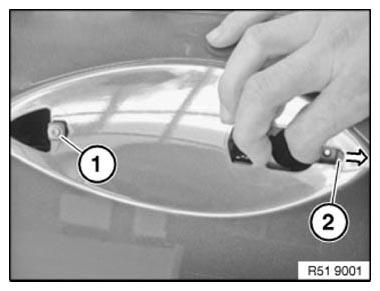

Fig 2: Identifying Retaining Lug And Retaining Screw

G10062753

Courtesy of BMW OF NORTH AMERICA, INC.

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation note:

Ensure correct Bowden cable installation position.

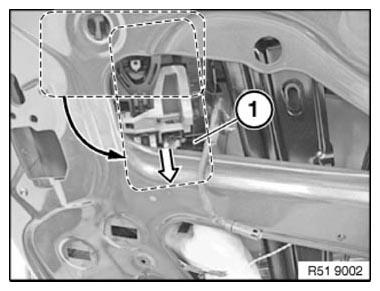

Fig 3: Removing Door Outside Handle Carrier

G10062754

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount LOCK BARREL .

Feed Bowden cable (1) out of carrier (2).

Installation note:

Make sure the Bowden cable (1) is positioned correctly on the support (2).

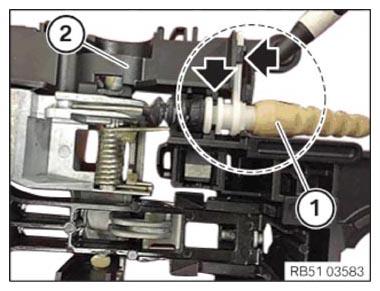

Fig 4: Removing/Installing Bowden Cable

G10062755

Courtesy of BMW OF NORTH AMERICA, INC.
