51 11... Removing and installing/replacing chrome strip in bumper panel (side)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Necessary preliminary work:

Remove FRONT BUMPER PANEL

Release all retaining lugs on chrome strip (1) with special tool 64 1 020 .

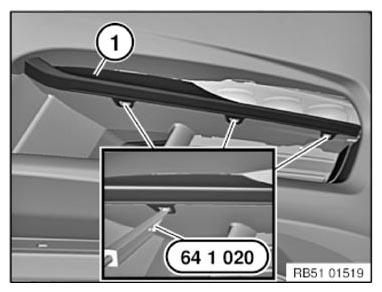

Fig 1: Releasing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanisms (1) and remove chrome strip towards front.

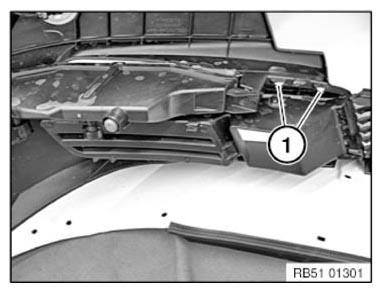

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) and (2) on chrome strip (3) must not be damaged or missing.

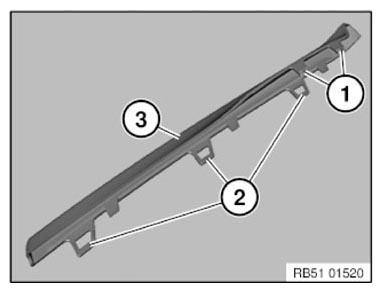

Fig 3: Identifying Retaining Lugs On Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
