51 11 050 Removing and installing/replacing support for front bumper panel

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER PANEL

Remove right headlight. See REMOVING RIGHT HEADLIGHT (XENON) or REMOVING RIGHT HEADLIGHT (ADAPTIVE HEADLIGHT) .

Version with active pedestrian protection

Remove pedestrian protection sensor

Pull off impact absorber (1) from support.

Installation note:

Connect bottom of impact absorber (1) to support, then press on at top.

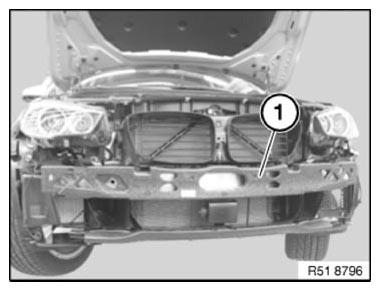

Fig 1: Identifying Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Damage to retaining lugs (1) on impact absorber (2) is to be avoided.
For version with active pedestrian protection, impact absorber (2) is not to reused

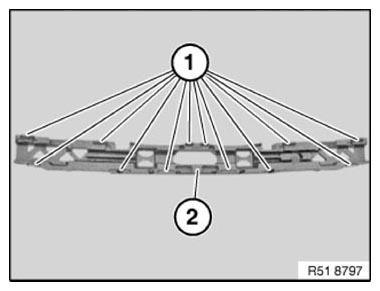

Fig 2: Identifying Retaining Lugs On Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector connections (1) from fanfare horn (2) on left and right.

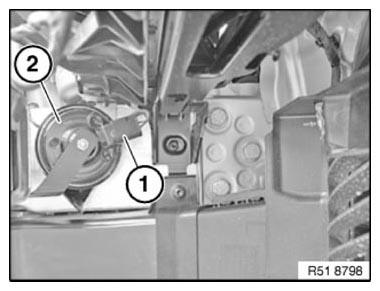

Fig 3: Identifying Fanfare Horn Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness along marking (1).

If necessary, drill out blind rivet (2).

Version with ACC:

Unfasten plug connection (3) and disconnect.

Drill out blind rivets (4).

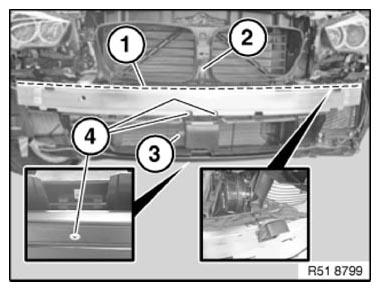

Fig 4: Identifying Blind Rivets, Wiring Harness Section, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection (1) on support (3).

Tightening torque 51 11 4AZ .

Installation note:

Renew self-locking screws/nuts.

Correctly install reinforcement plate (2) on left within the support.

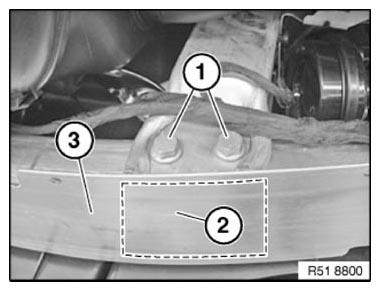

Fig 5: Identifying Screw Connection, Support, And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Reposition adapter plates (1) and plastic nuts.

Reposition holder for fanfare horn (2).

Modify holder (3).

Release screw connection (4) from reinforcement plate (5).

Tightening torque 51 11 4AZ .

Reposition reinforcement plate (5).

Installation note:

Replace self-locking screws.

Only apply screw connection (4) after installation of support on deformation element.

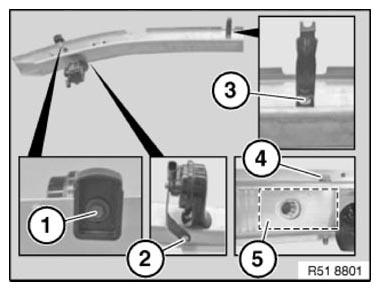

Fig 6: Identifying Holders, Adapter Plates, Reinforcement Plate, And Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.
