51 16 063 Removing and installing/replacing interior mirror (overview)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Interior mirrors with modified mirror base will be installed as of series launch F20 and for all subsequent series launches.
Observe new REPAIR INSTRUCTIONS .

Further introduction date:

F01, F02, F03, F06, F07, F10, F11, F12, F13, F18	07/2012
F25	03/2012

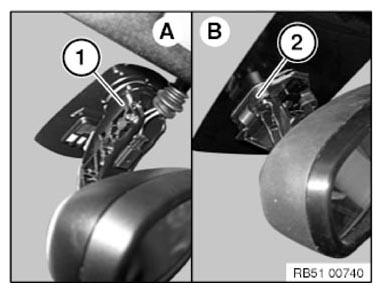

Distinguishing feature:

previous version, small mirror base (1) with round base plate on windscreen.
new version, large mirror base (2) with square base plate on windscreen.

NOTE: Dismantling of mirror cap is identical on both versions.

Fig 1: Identifying Interior Mirror Versions

Courtesy of BMW OF NORTH AMERICA, INC.

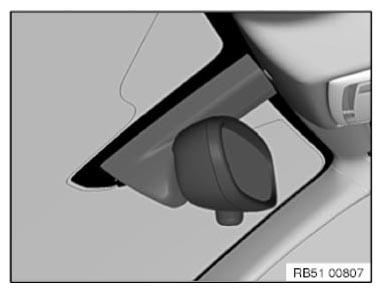

Version with mirror arm end cap:

See NEW VERSION (AS OF 07/2011) .

Fig 2: Identifying Version With Mirror Arm End Cap
Courtesy of BMW OF NORTH AMERICA, INC.

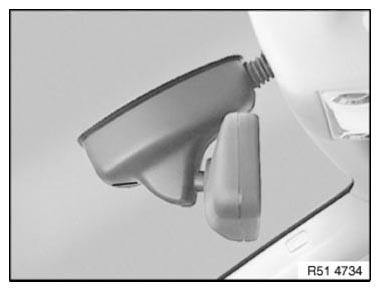

Version with rain sensor:

See NEW VERSION (AS OF 07/2011) .

Fig 3: Identifying Version With Rain Sensor
Courtesy of BMW OF NORTH AMERICA, INC.

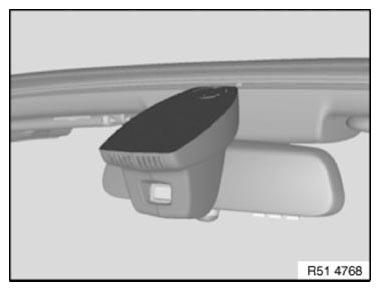

Version with Autobeam:

See NEW VERSION (AS OF 07/2011) .

Fig 4: Identifying Version with Autobeam
Courtesy of BMW OF NORTH AMERICA, INC.
