52 24... Removing and installing/replacing ski bag with casing
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SKI BAG COVER
- Remove REAR SEAT BACKREST

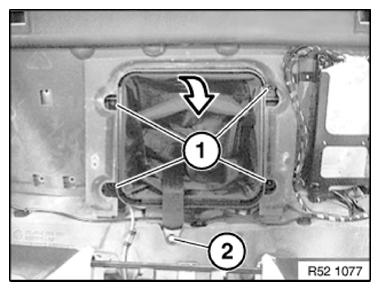

Release screws (1).
Tightening torque 52 24 13AZ .
Release screw (2).
Tightening torque 52 24 14AZ .
Remove casing towards front.
