52 14 125 Replacing left lumbar support valve unit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove backrest cover. See BACKREST COVER FOR DRIVER'S SEAT or BACKREST COVER FOR FRONT PASSENGER SEAT .

Remove valve body (2) from spring wire in direction of arrow.

Unfasten plug connection (1) and disconnect.

Installation note:

Check that valve body is correctly seated.

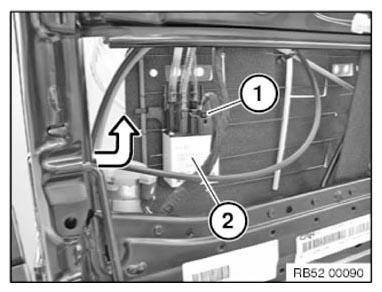

Fig 1: Removing Valve Body From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick connectors and detach air hoses (1) and (2).

Valve unit for lumbar support:

Hose (clear) lumbar support pump
Hose (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

Connect plug connection (3).

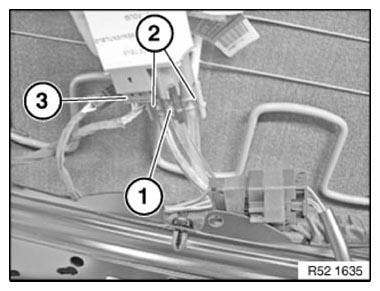

Fig 2: Identifying Air Hoses And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
