52 16 100 Removing and installing belt deflector

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unclip belt deflector (1) towards front.

Unfasten plug connection (2) and disconnect.

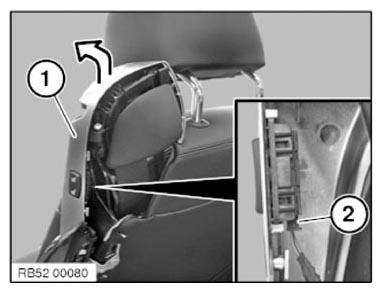

Fig 1: Removing Belt Deflector
G10063589Courtesy of BMW OF NORTH AMERICA, INC.

Feed out seat belt strap (1) from belt deflector cover (2).

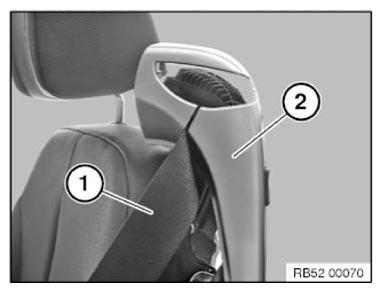

Fig 2: Identifying Seat Belt Strap And Belt Deflector Cover
G10063590Courtesy of BMW OF NORTH AMERICA, INC.
