52 16 105 Removing and installing/replacing outer backrest cover

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) in direction of arrow.

IMPORTANT: Risk of damage!
Cover (1) is secured to backrest frame by a retaining strap.

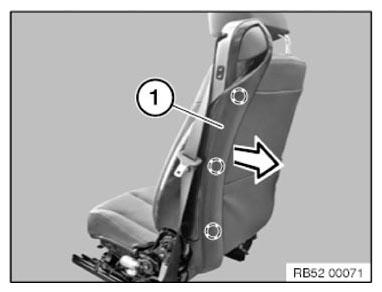

Fig 1: Unclipping Backrest Cover
G10063342Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clamp from backrest frame.

Installation note:

Make sure clamp is correctly seated on backrest frame.

Fig 2: Identifying Retaining Strap
G10063343Courtesy of BMW OF NORTH AMERICA, INC.

Pull release handle (1) and feed out cover (2).

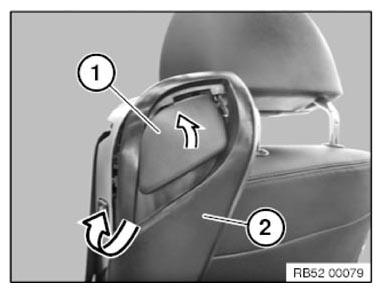

Fig 3: Removing Cover
G10063344Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-install metal clamps in trim.

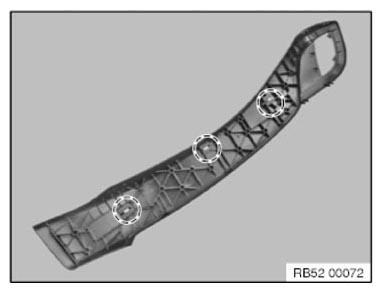

Fig 4: Identifying Metal Clamps
G10063345Courtesy of BMW OF NORTH AMERICA, INC.
