65 90 540 Removing and installing/replacing aerial of Global Positioning System (GPS)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: READ AND COMPLY WITH NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove side trim panel at rear right. See 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Disconnect plug connection (1).

Release expansion rivet (2).

Remove GPS aerial (3).

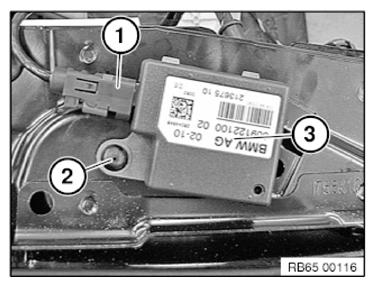

Fig 1: Identifying GPS Aerial Plug Connection And Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the GPS aerial is correctly installed!

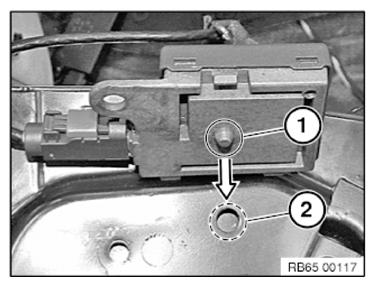

The retaining pin (1) must be seated in the corresponding opening (2).
