51 24 300 Removing and installing or replacing left or right gas pressure spring for tailgate
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
When removing both gas pressure springs, support tailgate in fully open position with suitable apparatus.
When removing both gas pressure springs, support tailgate in fully open position with suitable apparatus.
Open tailgate.
NOTE:
Make a written record of the alignment of gas strut (2) before removing.

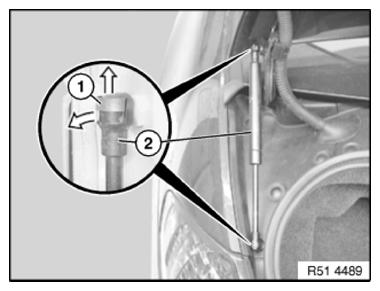

Slide retaining spring (1) to end of gas pressure spring (2) and lever out gas pressure spring (2).
Repeat the process at the other end of the gas pressure spring (2) and remove.
