51 13 316 Removing and installing or replacing trim strip on gutter strip at left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Undo edge protection (1) and gasket (2) in trim strip (3) area.

Release screws (4).

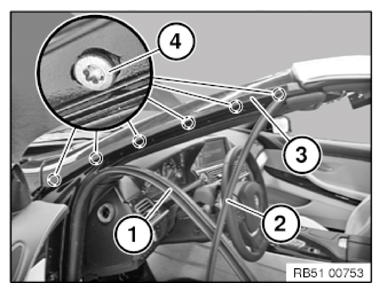

Fig 1: Identifying Edge Protection And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully undo trim strip (1) from A-pillar.

Feed out entire length of rubber seal (2) from trim strip (1).

Carefully remove trim strip (1) from edge protection (3).

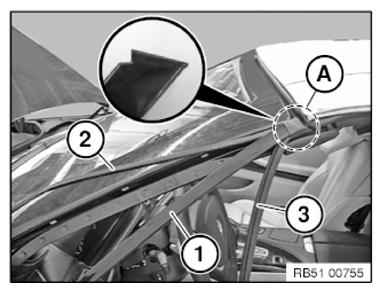

Fig 2: Identifying Trim Strip And Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed trim strip (1) into edge protection in area (A).
Insert rubber seal (2) into trim strip (1)
Fasten trim strip (1) to A-pillar
Tighten screws of trim strip (1).
Fit gasket (3) on trim strip (1)

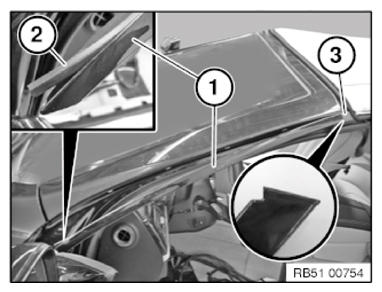

Fig 3: Identifying Trim Strip, Gasket And Rubber Seal
Courtesy of BMW OF NORTH AMERICA, INC.
