51 12 828 Removing and installing/replacing guide for the bumper panel, rear left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim. See 51 12 156 REMOVING AND INSTALLING (REPLACING) REAR BUMPER PANEL .

Release screws (1 and 2).

Tightening torque 51 12 3AZ .

Remove guide (3).

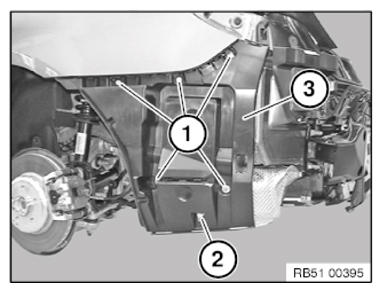

Fig 1: Identifying Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) of guide must not be damaged or missing.

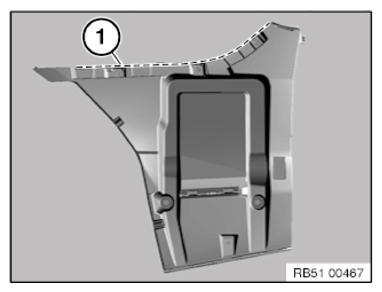

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
