51 16... Removing and installing/replacing oddments tray/ashtray in center console

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove side clip on center console. See 51 16 178 REMOVING AND INSTALLING (REPLACING) SIDE CLIP AT CENTER CONSOLE .

Release screws (1).

Remove oddments tray/ashtray (2).

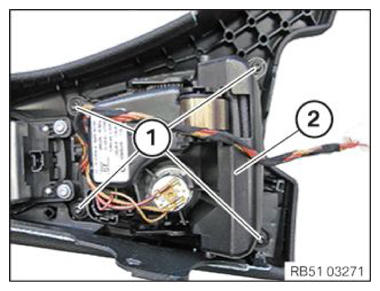

Fig 1: Identifying Oddments Tray/Ashtray And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

Remount 12 V POWER SOCKET
