51 71 482 Removing and installing/replacing left or right tension strut (on rear axle)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INFORMATION
for raising the vehicle
Driving without the trailing link is not permitted!
Driving without the trailing link is not permitted!
Release expanding rivet (1) and remove cover (2).

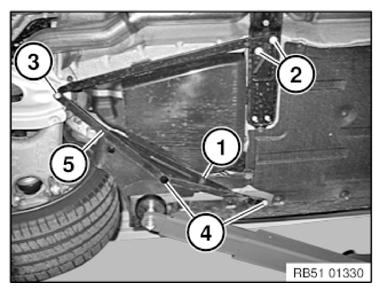

Release expansion rivet (1).
Release screws (2 to 4).
Remove trailing link (5).
Installation note:
Replace all bolts.
Tighten all screws to specified torque and angle of rotation.
| Position | Screw | Tightening torque |
|---|---|---|
| 2 | M8x35 | 51 61 17AZ |
| 3 | M10x40 | 51 61 16AZ |
| 4 | M12x1.5x70 | 51 61 10AZ |
