51 48... Replace the heat insulation for the tunnel

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For F10 M5 and F12/F13 M6, it must be retrofitted when replacing the heat insulation.

Cut the marked area of the heat insulation (1) off along the broken line (2).

Dimension "A" approx. 80 mm.

Flatten down the cutting edges (3) slightly to prevent sharp outer edges.

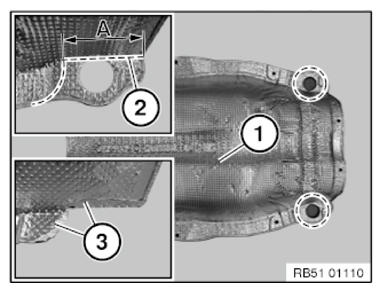

Fig 1: Identifying Heat Insulation And Broken Line

Courtesy of BMW OF NORTH AMERICA, INC.
