51 48 060 Removing and installing/replacing sound insulation in left or right front door

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Instructions for sound insulation are an essential part of these repair instructions and must be followed without fail. See 51 48... NOTES FOR BONDING SOUND INSULATION (SI), DOORS .
Do not detach sound insulation in jerks (risk of damage).
Ensure water tightness of sound insulation after every repair (water ingress).

Necessary preliminary tasks:

Remove door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Twist and remove the twist clips (1) (bayonet fitting).

Installation note:

Sealing surfaces (2) on the sound insulation (3) must not be damaged.

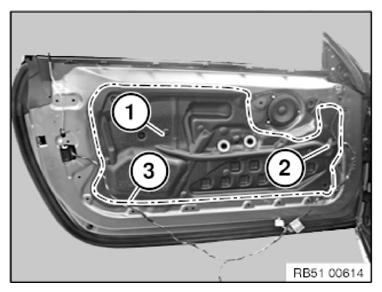

Fig 1: Identifying Twist Clips And Sound Insulation Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When cutting through sealing bead (1), do not damage sound insulation (2) and if necessary cable.
With a suitable sharp cutting tool (3) cut through sealing bead (1) of sound insulation (2) in the area to be detached.

Fig 2: Identifying Sealing Bead And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Position of sealing bead (3).

Feed out and remove sound insulation (1) at wiring harness (2).

Fig 3: Identifying Sound Insulation And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

When refitting:

Damaged sound insulation must be replaced.

Lay butyl rope with Ø 3 mm onto the original butyl rope.

Replacement:

Remove residual butyl at the door and clean the adhesive area.

Air drying time: 1 minute

IMPORTANT: Bonding surface must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Lay 6 mm diameter butyl rope in specified adhesive area onto the sound insulation.

NOTE: A mark (2) is provided all round on the sound insulation (1).
Butyl rope (3) rests on or inside the marking (2).
Heat butyl rope (3) (hot air blower) and press sound insulation (1) on firmly all-round.
Contact pressure with hand roller: approx. 20 N/cm²
Manual contact pressure: approx. 10 N/cm²

Fig 4: Identifying Butyl Rope And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Firm thumb pressure has approx. 30 N/cm²
