51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Unhook Bowden cable for release lever:

Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation note:

Press release lever (1) for installation opposite to direction of arrow on door trim panel.

Fig 1: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

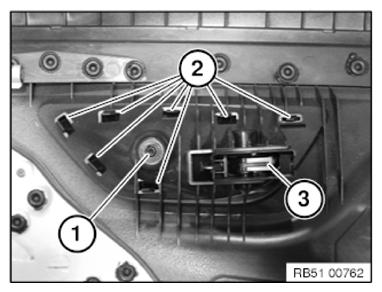

Release screw (1).

Release catches (2) and remove door opener (3).

Fig 2: Identifying Catches And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) on door opener (2) must not be damaged.

Fig 3: Identifying Catches On Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
