51 11 180 Removing and installing/replacing ornamental grille (middle) in bumper panel

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper panel. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .

Release all retainers (1).

Remove ornamental grille (2).

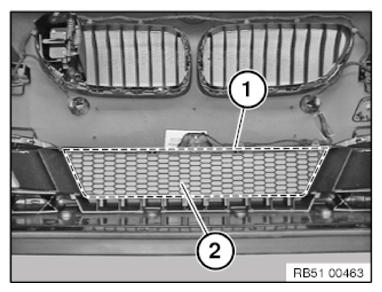

Fig 1: Identifying Ornamental Grille And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on the bumper must not be damaged or missing.

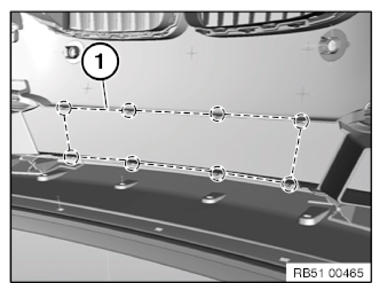

Fig 2: Identifying Latch Mechanisms On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
