51 47 165 Remove and install/replace top luggage compartment trim panel

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release clips (1) and remove luggage compartment trim panel (2) towards bottom.

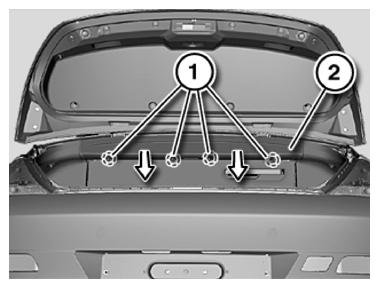

Fig 1: Removing Luggage Compartment Trim Panel
G10046556Courtesy of BMW OF NORTH AMERICA, INC.
