41 35 081 Removing And Installing Front Side Panel On Left

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe gap dimensions. See 41 00... BODY GAP DIMENSIONS .

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary tasks:

Remove seal mounting for engine compartment lid. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .
Remove SIDE REPEATER
Remove trim panel for cover on side member. See 51 71 447 REMOVING AND INSTALLING OR REPLACING TRIM PANEL FOR COVER ON LEFT OR RIGHT SIDE MEMBER .
Remove wheel arch covers. See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) or 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION) .
Partially loosen bumper panel on the side. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .

Raise engine compartment lid.

Loosen cowl panel cover (1) from the side wall (arrow).

Feed out sealing (2).

Fig 1: Locating Cowl Panel Cover From Side Wall

G10040323

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Holder And Screw

G10040324

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 41 35 1AZ .

Bend holder (2) approx. 15 mm to the rear.

Installation note:

After installation of the side wall, the holder must be bent back again.

IMPORTANT: When removing the side wall, the guide (1) on the headlight housing must not be damaged!

Installation note:

Pay attention to the correct installation position of the sidewall in the area of the guide (1).

Fig 3: Identifying Headlight Housing Guide

G10040325

Courtesy of BMW OF NORTH AMERICA, INC.

Open door.

Release sealing (1) by about half.

Fig 4: Identifying Door Seal

G10040326

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Front Side Panel Screws And Nuts

G10040327

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws and nuts.

Tightening torque 41 35 1AZ .

Tightening torque 41 35 2AZ .

Feed side wall out in the area of the A-pillar, first outward, then toward the back.

Only vehicles with park assistant:

Repair work in area (1) is not permitted.

Replace side wall.

Fig 6: Identifying Side Wall Area

G09878829

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement , only national-market version Japan:

Replace wheel arch trim (1). See 51 13 061 REPLACING WHEEL ARCH TRIM ON FRONT LEFT OR RIGHT SIDE PANEL (JAPANESE NATIONAL-MARKET VERSION) .

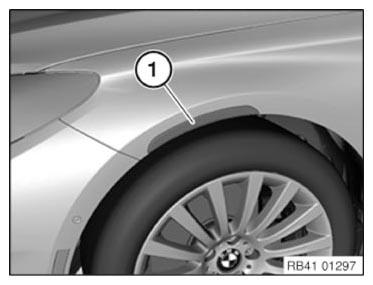

Fig 7: Identifying Wheel Arch Trim

G10040329
