41 61 000 Removing And Installing Engine Compartment Lid
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
IMPORTANT:
These instructions only apply to vehicles without active pedestrian protection
.
Observe separate procedure for vehicles with active pedestrian protection. See 41 61 010 REMOVING AND INSTALLING ENGINE COMPARTMENT LID (ACTIVE PEDESTRIAN PROTECTION AFGS) .
Observe separate procedure for vehicles with active pedestrian protection. See 41 61 010 REMOVING AND INSTALLING ENGINE COMPARTMENT LID (ACTIVE PEDESTRIAN PROTECTION AFGS) .

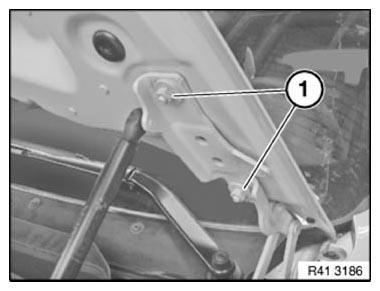

Carry over schematic diagram to the relevant vehicle type.
Unscrew nuts (1).
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust engine compartment lid. See 41 61 014 ADJUSTING ENGINE COMPARTMENT LID .
