37 12 092 Replacing rear left or right spring strut (M6)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 3 340
31 3 341
31 3 351
33 0 040

WARNING: Prior to each use of special tool 31 3 340 , it is essential to read the associated Owner's Handbook fully!
All the safety precautions and instructions contained in the Owner's Handbook must be strictly observed!
Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!

IMPORTANT:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
Keep special tools dry, clean and (down to the spindle) free from grease.
Impact screwdrivers are prohibited!
Do not compress coil spring to full extent.

Necessary preliminary tasks:

Remove REAR SPRING STRUT SHOCK ABSORBER

Removing:

Clamp special tool 31 3 341 in vice.

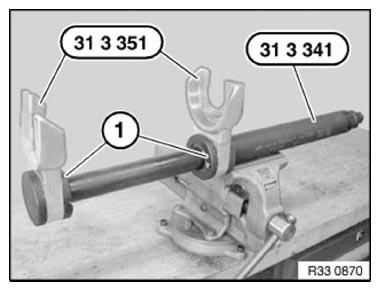

Fit special tools 31 3 351 from above on special tool 31 3 341 until retaining bolt (1) can be felt and heard to snap into place.

Fig 1: Installing Special Tools (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

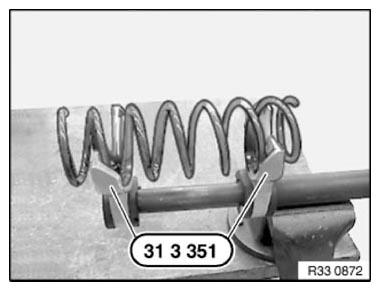

Clean coil spring to remove all coarse dirt and mount on special tools 31 3 351 .

WARNING: Coils of coil spring must be located completely in recesses of special tools 31 3 351 !

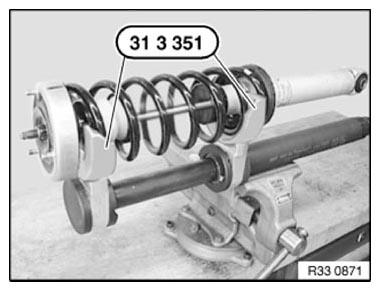

Compress coil spring until stress on piston rod is relieved.

Fig 2: Identifying Special Tools (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut with special tool 33 0 040.

Remove plate and support bearing with spring pad.

Remove shock absorber with support cup, auxiliary damper, protective tube and spring pad sideways from tensioned coil spring.

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber!

Fig 3: Identifying Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove support cup, auxiliary spring (1) with protective tube and spring pad (2) from shock absorber.

Fig 4: Identifying Auxiliary Spring And Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Relieve tension on coil spring and remove from special tools 31 3 351 .

Fig 5: Identifying Special Tools (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly:

WARNING: Do not compress coil spring to full extent.
Coils of coil spring must be located completely in recesses of special tools 31 3 351 !

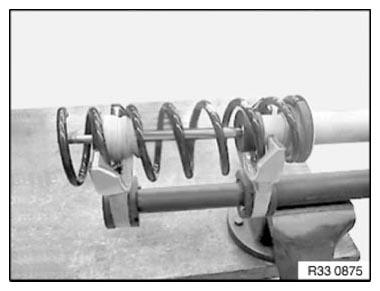

Tension coil spring.

Fig 6: Identifying Special Tools (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

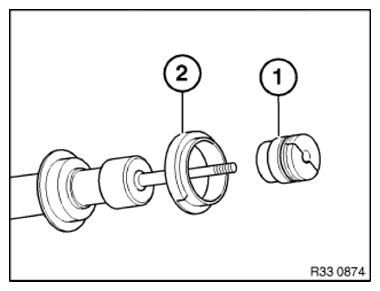

Check auxiliary spring (1) with protective tube and spring pad (2) for damage, and replace if necessary.

IMPORTANT: Coat contact surface of spring pad (2) to shock absorber with Circo Light.

Fig 7: Identifying Auxiliary Spring And Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Attach support cup to piston rod.

Insert shock absorber in tensioned coil spring.

Fig 8: Identifying Spring Strut And Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Check support bearing for damage, replace if necessary.

Attach support bearing and plate to piston rod.

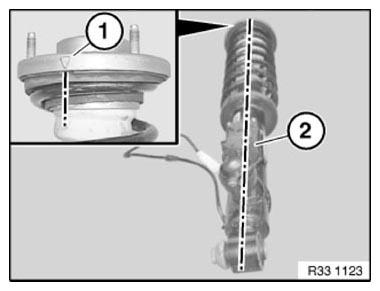

IMPORTANT: Align support bearing with the shock absorber!

Arrow (1) on the support bearing must point to the control unit (2).

Fig 9: Identifying Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

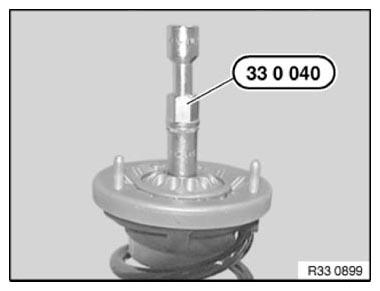

Replace nut and tighten down with special tool 33 0 040.

Tightening torque 33 52 2AZ .

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber!

Fig 10: Identifying Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Align support bearing by way of spring pad to end of coil spring.

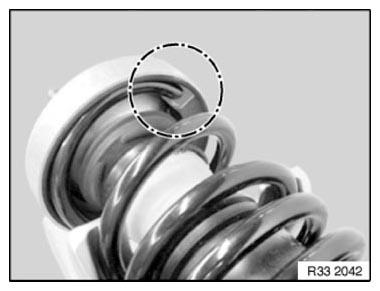

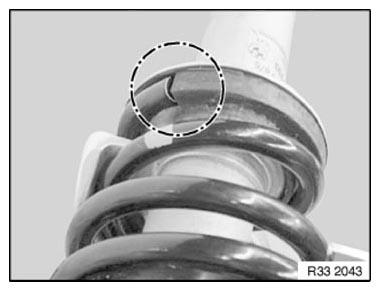

Fig 11: Identifying Coil Spring End

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Lower end of coil spring must rest on stop of spring pad!

Relieve tension on coil spring.

Fig 12: Identifying Coil Spring Stop Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Secure upper spring strut in body.
Align shock absorber eye to swivel bearing by turning shock absorber.
Code spring strut with ISID tester and check software version
