37 12 1090 Removing and installing rear left or right spring strut (M6)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WHEEL

Actuate soft top until soft top compartment lid is fully open.

IMPORTANT: Soft top is depressurized when not activated and soft top compartment lid closes!
Support soft top compartment lid with suitable tool.

Remove protective cap (1).

Unscrew nuts (2).

Installation note:

Replace self-locking nuts.

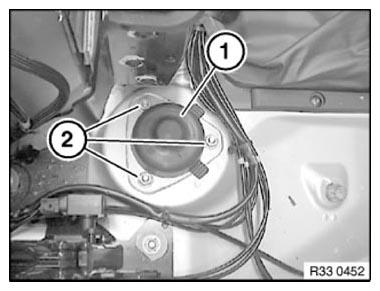

Fig 1: Identifying Protective Cap Nut

G10045619

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 33 52 1AZ .

Unfasten plug connection (1) and disconnect.

Expose line up to the spring strut.

Fig 2: Identifying Spring Strut Plug Connection

G09915598

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Partially fold up wheel arch panel (2).

Installation note:

Replace nut if necessary

Fig 3: Turning Wheel Arch Panel

G09915599

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation note:

Replace screw.

Tightening torque 33 52 3AZ

Fig 4: Identifying Spring Strut Bolt

G06889804

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel carrier downwards.

Remove spring strut towards rear/downwards.

Fig 5: Removing Spring Strut

G09915601

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
