37 12 090 Removing and installing rear left or right spring strut (EDC)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WHEEL
Remove WHEEL ARCH COVER at rear left or right
Remove luggage compartment trim on the left or right. See REMOVING/INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or REMOVING/INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Detach the plug connection (1) of the EDC damper in the luggage compartment.

Undo the nuts (2) from the damper screw connection.

Installation note:

Replace self-locking nuts.

Tightening torque 33 52 1AZ .

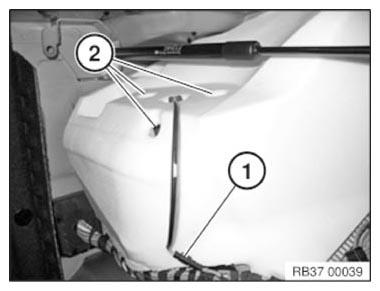

Fig 1: Identifying EDC Damper Plug Connection Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation note:

Replace screw.

Tightening torque 33 52 3AZ

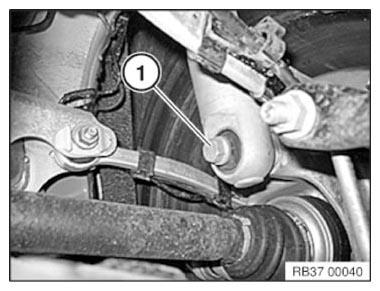

Fig 2: Identifying Spring Strut Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel carrier (1) down.

First move spring strut (2) down slightly in direction of arrow in front of output shaft. Then, at top of wheel arch, swing down spring strut and remove.

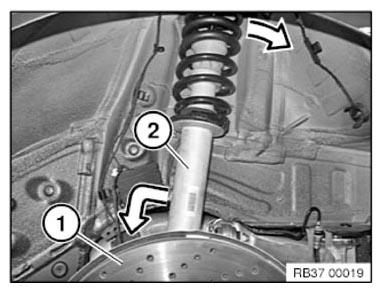

Fig 3: Removing Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
