63 11 845 Replacing left LED fan (inner)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 296 785

Necessary preliminary tasks:

Remove headlight with LED technology. See 63 12 140 REMOVING AND INSTALLING (REPLACING) LEFT HEADLIGHT WITH LED TECHNOLOGY or 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY .
Remove headlight driver module. See 63 11 570 REMOVING AND INSTALLING/REPLACING THE LEFT LED TECHNOLOGY HEADLIGHT DRIVER MODULE .

Release latch mechanism (1) and screws underneath.

Tightening torque 63 11 6AZ .

Remove cover (2).

Fig 1: Identifying Cover With Latch Mechanism

G10048453

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

Fig 2: Identifying Left LED Fan Gasket

G08505823

Courtesy of BMW OF NORTH AMERICA, INC.

Press together connector (1) (arrow) and disengage to the rear into light housing.

IMPORTANT: Risk of damage!
Do not bend pins of connector (1)!

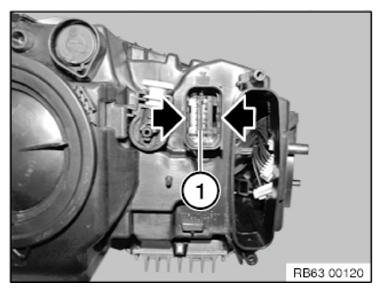

Fig 3: Locating Light Housing Connector

G10048455

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) on LED fan through opening (1). Release screw (3) through opening (1) with special tool 2 296 785 .

Screw (2; 3) tightening torque 63 11 5AZ .

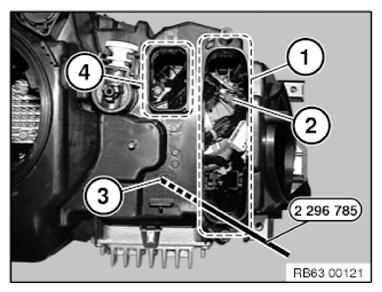

Fig 4: Identifying LED Fan Screws

G10048456

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove fan (2) to the side.

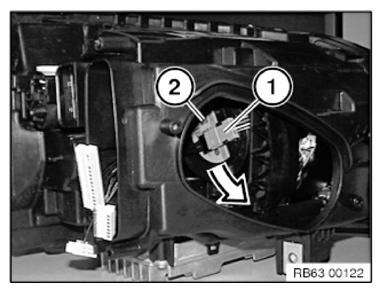

Fig 5: Disconnecting Fan Plug Connection

G10048457

Courtesy of BMW OF NORTH AMERICA, INC.
