63 11 820 Replacing left cornering light LED module (late version)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove headlight. See 63 12 140 REMOVING AND INSTALLING (REPLACING) LEFT HEADLIGHT WITH LED TECHNOLOGY or 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY .

Release screws (1).

Tightening torque 63 11 3AZ .

Remove LED module (2).

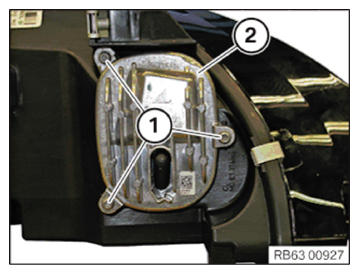

Fig 1: Identifying LED Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable strap (1).

Disconnect connector (2).

Remove LED module (3).

Installation note:

Replace cable tie (1).

IMPORTANT: Risk of damage due to moisture penetration!
Gasket (4) on LED module (3) must not be damaged or missing.

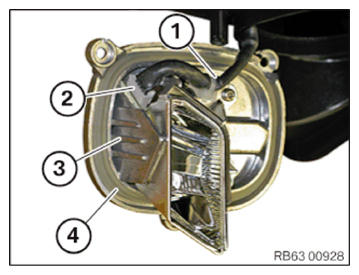

Fig 2: Identifying LED Module, Cable Tie, Cable Strap, Connector

Courtesy of BMW OF NORTH AMERICA, INC.
