63 11 820 Replacing left cornering light LED module (early version)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove headlight. See 63 12 140 REMOVING AND INSTALLING (REPLACING) LEFT HEADLIGHT WITH LED TECHNOLOGY or 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY .

Release screws (1).

Remove LED module (2).

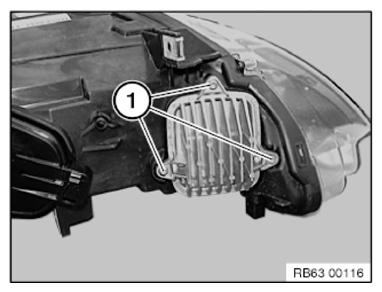

Fig 1: Identifying LED Module With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove LED module (2).

Installation note:

Gasket (3) for LED module (2) must not be damaged and must be installed free from grease.

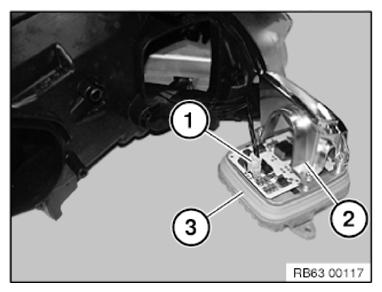

Fig 2: Identifying LED Module Plug Connection With Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
