63 11 760 Replace FLEL control unit (early version)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Remove headlight with LED technology on the left. See 63 12 140 Removing and installing (replacing) left headlight with LED technology .

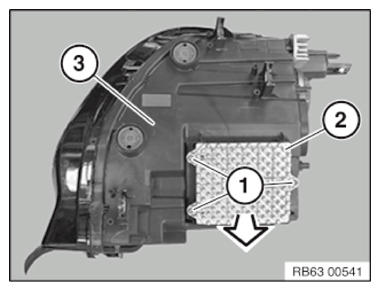

Release screws (1) and pull control unit of front light electronics (2) out of headlight (3).

Fig 1: Pulling Control Unit Of Front Light Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

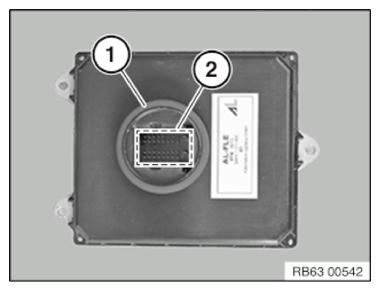

Gasket (1) on control unit of front light electronics must not be damaged and must be installed free from grease.

Plug-in contacts (2) on control unit of front light electronics must not be damaged or missing.

Fig 2: Identifying Control Unit Of Front Light Electronics Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
