25 11 211 Replacing gearshift arm for gearshift lever mount

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove GEARSHIFT LEVER

Detach support bearing (1) from gearshift arm.

Installation note:

Grease bearing journal.

Grease, refer to BMW Service Operating Fluids. See GEAR SHIFT MECHANISM -- OPERATING FLUIDS .

Attach support bearing (1) with recess (3) towards rear on gearshift arm.

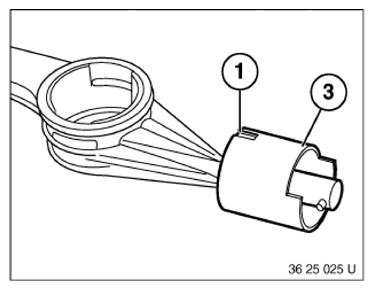

Fig 1: Identifying Support Bearing From Gearshift Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Check bearing bushes for damage.

If necessary, replace BEARING BUSHES .

Fig 2: Identifying Bearing Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
