52 17 726 Removing and installing/replacing seat mechanism on left or right front seat

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat and backrest cover with upholstery. See 52 14 407 REPLACING BACKREST COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) , 52 14 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) , 52 16 407 REPLACING BACKREST COVER (SPORT) FOR DRIVER'S SEAT or 52 16 408 REPLACING BACKREST COVER (SPORT) FOR FRONT PASSENGER SEAT .

Replacement:

Only with comfort seat with active seat before model revision (without REMA seat belt):

Saw off tab (1) along the line (2).

NOTE: The version with the REMA seat belt uses the tab (1) as an attachment point.
In this version, the tab (1) may not be removed.

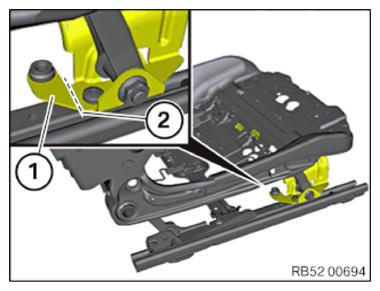

Fig 1: Identifying REMA Seat Belt Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Swap over the following parts according to version:

Seat Belts . See 72 11 001 REMOVING AND INSTALLING/REPLACING FRONT SEAT BELT COMPLETELY ON THE FRONT LEFT or 72 11 002 REMOVING AND INSTALLING/REPLACING FRONT SEAT BELT (COMPLETE) .
Lower strap . See 72 11 070 REMOVING AND INSTALLING/REPLACING FRONT LOWER STRAP FITTING (BELT TENSIONER), DRIVER'S SEAT or 72 11 071 REMOVING AND INSTALLING/REPLACING FRONT LOWER STRAP FITTING (BELT TENSIONER), FRONT PASSENGER SEAT .
Release mechanism . See 52 14 034 REMOVING AND INSTALLING/REPLACING RELEASE MECHANISM ON FRONT SEAT (NORMAL/SPORTS SEAT) LEFT OR RIGHT or 52 17 037 REMOVING AND INSTALLING/REPLACING RELEASE MECHANISM ON LEFT OR RIGHT FRONT SEAT (COMFORT SEAT) .
Lumbar support, pump and valve unit. See 52 14 060 REMOVING AND INSTALLING/REPLACING VALVE BODY FOR LEFT OR RIGHT FRONT LUMBAR SUPPORT ; 52 14 125 REPLACING LEFT LUMBAR SUPPORT VALVE UNIT or 52 14 127 REPLACING THE VALVE UNIT FOR RIGHT LUMBAR SUPPORT .
Pump for active seat . See 52 17 028 REMOVING AND INSTALLING/REPLACING PUMP FOR PRESSURE DISTRIBUTOR ; 52 17 120 REPLACING LEFT ACTIVE SEAT OF PUMP or 52 17 122 REPLACING RIGHT ACTIVE SEAT OF PUMP .
Upholstery set for active seat . See 52 17 130 REPLACING LUMBAR SUPPORT SET ON LEFT or 52 17 132 REPLACING LUMBAR SUPPORT SET ON RIGHT .
Exhaust camshaft adjuster for thigh support . See 52 17... REMOVING AND INSTALLING/REPLACING ADJUSTING UNIT FOR THIGH SUPPORT (ELECTRIC) ON FRONT SEAT or 52 16... REMOVING AND INSTALLING/REPLACING ADJUSTING UNIT FOR THIGH SUPPORT (MANUAL) ON FRONT SEAT .
EXHAUST CAMSHAFT ADJUSTER FOR BACKREST WIDTH ADJUSTMENT .
CONTROL UNIT/MODULE FOR SEAT ADJUSTMENT .
Wiring harness
