52 17... Removing and installing/replacing adjusting unit for thigh support (electric) on front seat

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove THIGH SUPPORT
Remove ELECTRIC MOTOR FOR THIGH SUPPORT

Release screw connection (1).

Fig 1: Identifying Front Seat Thigh Support Adjusting Unit Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly raise seat cover (1) in center.

Push out carriage (2) in direction of arrow.

Release screws (3).

Remove adjusting unit.

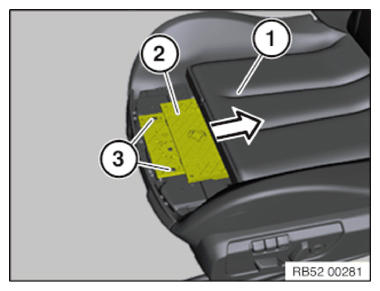

Fig 2: Pushing Carriage In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
