16 12 010 Removing and installing/replacing carbon canister (US version with DMTL)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach rear silencer at rear left (exhaust system remains installed).

Release screws (2) and nuts (1) and remove stoneguard (2).

Installation note:

Check and, if necessary, renew plastic nuts/sheet metal screws.

Fig 1: Identifying Stoneguard And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1).

NOTE: Graphic without exhaust system.

Fig 2: Identifying Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

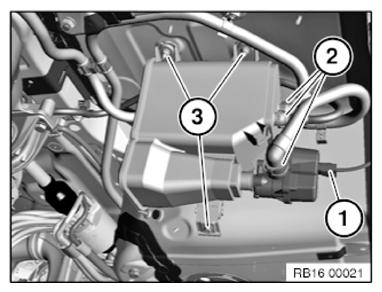

Disconnect plug connection (1).

Unlock snap fasteners (2) and disconnect lines.

Release screws and nuts (3) and remove carbon canister.

Installation note:

Tightening torque 16 13 1AZ .

The following components must be modified when the carbon canister is replaced:

DIAGNOSIS MODULE

Fig 3: Identifying Plug Connection And Snap Fasteners
Courtesy of BMW OF NORTH AMERICA, INC.
