16 13 015 Removing and installing/replacing tank leak diagnosis module (petrol/gasoline vehicles with US DMTL version)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release bumper at bottom right (do not remove).

Release screws (2) and nuts (1) and remove stoneguard (2).

Installation note:

Check and, if necessary, renew plastic nuts/sheet metal screws.

Fig 1: Identifying Stoneguard And Nuts

G10039393

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and shift carbon canister slightly to one side.

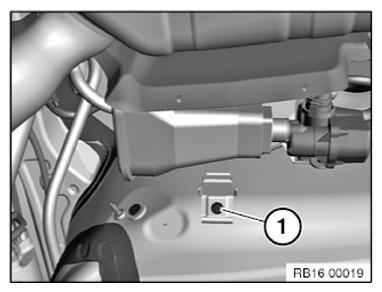

Fig 2: Identifying Shift Carbon Canister And Screw

G10039415

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Pull diagnosis module (3) out of carbon canister in direction of arrow. If necessary, push diagnosis module slightly away from holder.

Installation note:

Replace gasket.

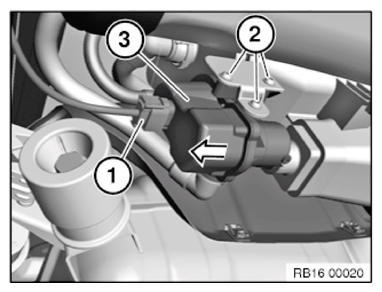

Fig 3: Pulling Diagnosis Module Of Carbon Canister

G10039416

Courtesy of BMW OF NORTH AMERICA, INC.
