67 61 541 Remove/install/replace drive for the rear window

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Support soft top compartment lid in SERVICE POSITION
Remove REAR WINDOW GASKET

Release screws.

Remove cover (1) from rear window module.

Fig 1: Locating Rear Window Module Cover Screws

G10049083

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove cover (1) for hydraulic aggregate.

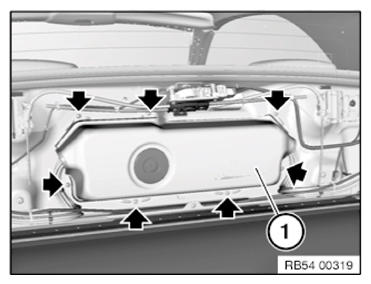

Fig 2: Locating Hydraulic Aggregate Cover Screws

G10049084

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 67 62 4AZ .

Remove cover.

Fig 3: Identifying Cover Screws

G10049085

Courtesy of BMW OF NORTH AMERICA, INC.

Remove riser cable (2) from the guide.

Release screws.

Tightening torque 67 62 5AZ .

Remove mounting plate (1).

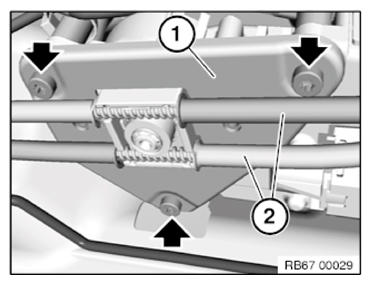

Fig 4: Locating Mounting Plate Screws

G10049086

Courtesy of BMW OF NORTH AMERICA, INC.

Remove electric motor (2).

Unfasten plug connection (1) and disconnect.

Installation note:

Guide plate (3) must be correctly positioned on the worm drive (4).

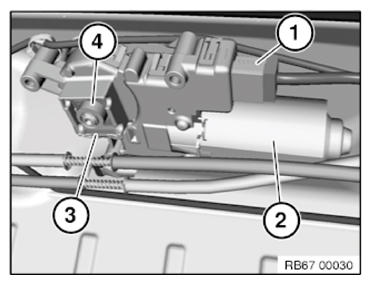

Fig 5: Identifying Electric Motor, Guide Plate, Worm Drive, Plug Connection

G10049087

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Please observe the installation sequence!

Guide plate (2) must be correctly positioned on the worm drive (1).

Riser cables (3) must be correctly positioned in the guides at the worm drive (1).

Fig 6: Identifying Guide Plate, Worm Drive And Riser Cables

G10049088

Courtesy of BMW OF NORTH AMERICA, INC.
