54 34 310 Removing and installing/renewing gasket for rear window

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Open soft top compartment until all hydraulic cylinders are extended.

Support soft top compartment lid in SERVICE POSITION .

Fig 1: Identifying Soft Top Compartment

G04781201

Courtesy of BMW OF NORTH AMERICA, INC.

Gasket on the rear window module:

Release left and right screws (1).

Remove cover (2) on left and right.

Installation note:

Tightening torque 54 34 06AZ .

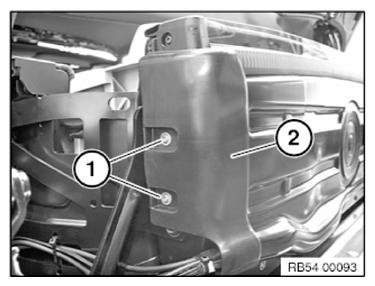

Fig 2: Identifying Rear Window Module Cover Screws

G10047739

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Pull gasket off upwards from rear window module.

Installation note:

Tightening torque 54 34 08AZ .

Fig 3: Identifying Rear Window Module Screws

G04781322

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

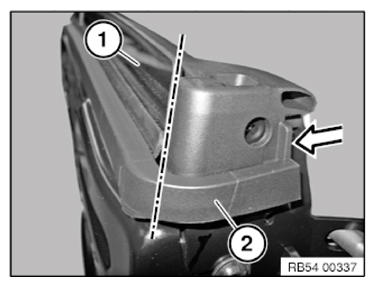

Gasket (2) must be pressed in line with the rear window (1) in front of the screws.

Fig 4: Pressing Gasket Into place

G10047741

Courtesy of BMW OF NORTH AMERICA, INC.
