26 12 001 Replacing complete propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

NOTE: The propeller shaft is balanced.
The front and rear propeller shafts must be reassembled in the same position.

Fig 1: Locating Propeller Shaft Gaiter And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

Installation note:

Make sure gaiter (1) is securely fitted in groove (2).

Pull apart propeller shaft.

Fig 2: Pulling Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

Fig 3: Identifying Propeller Shaft Clamping Ring

Courtesy of BMW OF NORTH AMERICA, INC.

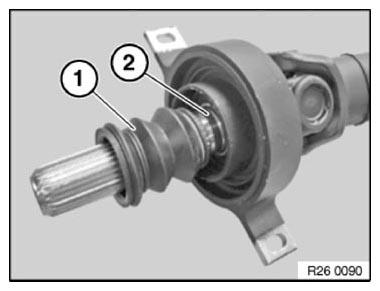

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply a coating of grease to longitudinal splines on shaft.

Grease, refer to DRIVESHAFT -- OPERATING FLUIDS .

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

Fig 4: Identifying Propeller Shaft Gaiter And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

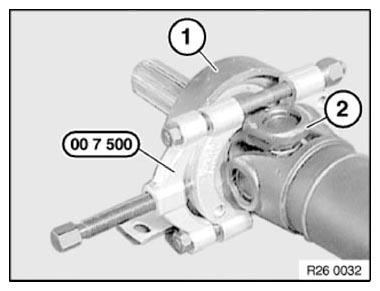

Install special tool 00 7 500 between center mount (1) and universal joint (2).

Fig 5: Installing Special Tool (00 7 500)

Courtesy of BMW OF NORTH AMERICA, INC.

Using a hydraulic press, force center mount (1) off propeller shaft (2).

Fig 6: Pressing Propeller Shaft Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Force new center bearing (1) onto propeller shaft. Collar (2) must point in direction of travel towards front propeller shaft. Drive center mount to limit position with special tool 33 1 020 .

Fig 7: Installing Center Bearing Onto Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
