26 12 001 Replacing complete propeller shaft center bearing (constant velocity joint)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Propeller shaft is balanced as a unit.

Mark the front propeller shaft to the rear propeller shaft with a paint pen.

Marking with major surface damage (e.g. punch mark) is not permitted.

Fig 1: Locating Front Propeller Shaft Mark

G04766691

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Pull apart propeller shaft.

Installation note:

Thread free of grease.

Make sure that the marks match when sliding the unit together.

Install screw (1) with screw locking.

Tightening torque 26 11 9AZ .

Fig 2: Identifying Propeller Shaft Screw

G04766692

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the shim and/or dust guard.

Fig 3: Locating Propeller Shaft Shim

G04749013

Courtesy of BMW OF NORTH AMERICA, INC.

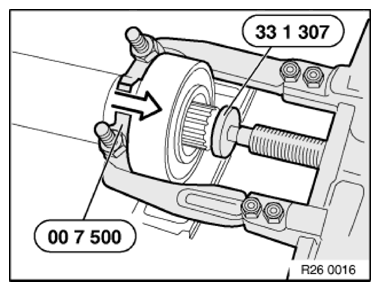

Remove the center mount with special tool 00 7 500 /33 1 307 and conventional pull-off tools.

Fig 4: Removing Center Mount Using Special Tool (00 7 500)

G10044882

Courtesy of BMW OF NORTH AMERICA, INC.

Drive new center mount firmly with special tool up to limit position 24 0 090 and/or 24 1 050 .

NOTE: Inner bearing diameter 30 mm, use special tool 24 0 090 .
Inner bearing diameter 35 mm, use special tool 24 1 050 .

Fig 5: Installing Center Mount Using Special Tool

G04749015

Courtesy of BMW OF NORTH AMERICA, INC.
