54 34... Wiring harness repair for angle-of-rotation sensor for fin

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GASKET ON REAR RIGHT .
Support soft top compartment lid in SERVICE POSITION .

WARNING: Soft top becomes pressureless without a warning signal.
For all repair work, secure soft top with a suitable aid against collapsing.
Ensure that the support is centered and broad.
Ignition must remain switched off during the repair work.
If this is not observed, preliminary damage to the hydraulic valves or a switch-off into overload protection cannot be excluded. Follow the diagnosis instructions.

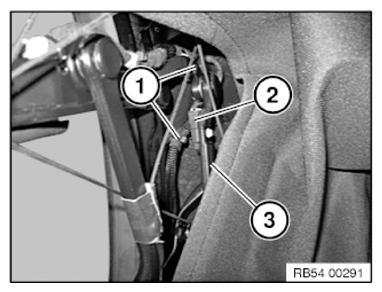

Cut open cable strap (1).

Disconnect plug connection (2) from angle-of-rotation sensor for fin.

Unclip connector from soft top frame (3).

Fig 1: Identifying Soft Top Frame Connector And Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

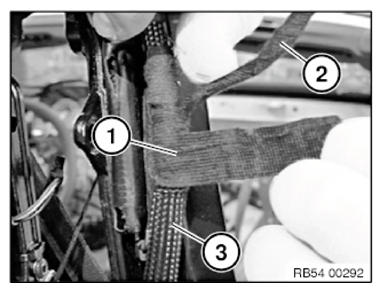

Remove winding tape (1) on wiring harness to junction angle-of-rotation sensor for fin (2).

Push back braided hose (3) on wiring harness.

Fig 2: Identifying Wiring Harness Winding Tape And Braided Hose

Courtesy of BMW OF NORTH AMERICA, INC.

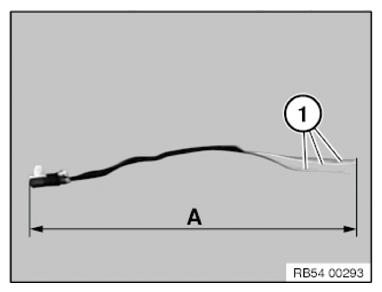

Cut wiring (1) of angle-of-rotation sensor for fin at dimension A= 25 mm.

Fig 3: Identifying Angle-Of-Rotation Sensor Wiring

Courtesy of BMW OF NORTH AMERICA, INC.

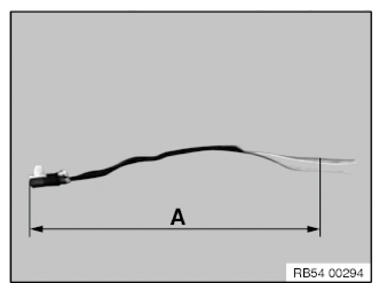

Cut replacement wiring set for angle-of-rotation sensor for fin (BMW part number: 54 34 7 322 308) at dimension A = 26 mm.

Crimp and insulate replacement wiring set on wiring harness appropriately with BUTT CONNECTOR .

Installation note:

Observe color coding of the individual cables.

Comply with NOTES ON HANDLING WIRING HARNESSES .

Fig 4: Identifying Wiring Harnesses Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Push braided hose (3) upward on wiring harness and secure at previous junction to angle-of-rotation sensor for fin (2) with winding tape (1).

Fig 5: Identifying Wiring Harness Winding Tape And Braided Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Clip connector to soft top frame (3).

Establish plug connection (2) to angle-of-rotation sensor for fin.

Attach wiring harness to soft top frame with cable strap (1).

Fig 6: Identifying Soft Top Frame Connector, Soft Top Frame Wiring Harness With Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove support for soft top compartment lid.

Carry out FUNCTION CHECK .
