54 34 343 Removing and installing/replacing rear left or right gasket

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open soft top until working area is accessible
Side windows opened completely

Unbutton control cable (1) from gasket.

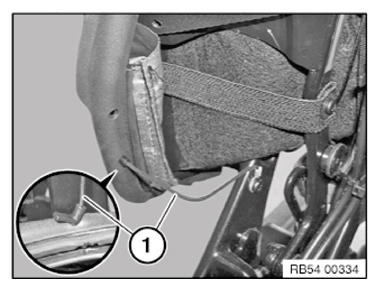

Fig 1: Identifying Control Cable From Gasket

G10047803

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 54 34 13AZ .

Pull welt (3) out of soft top cover.

Remove gasket (2).

Installation note:

Pull off protective film and adhere gasket along the embossing edge to the fin underside.

Follow REPAIR INSTRUCTIONS for bonded gaskets!

Fig 2: Identifying Soft Top Cover Welt, Gasket, Screws

G04781298

Courtesy of BMW OF NORTH AMERICA, INC.

Undo rivet connections (1).

Remove gasket with insert and completely remove rivet residue.

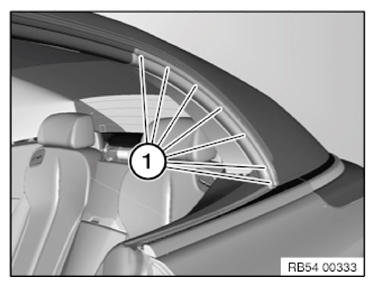

Fig 3: Identifying Rivet Connections

G10047805

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply locking pliers to top and secure gasket with insert to main pillar.

Rivet seal carrier in the specified order to soft top linkage.

IMPORTANT: Risk of damage to side window or to gasket (window guide). Pin on rivet shank must be completely torn off.

Fig 4: Identifying Locking Pliers To Top

G10047806

Courtesy of BMW OF NORTH AMERICA, INC.

Run a function check.

Side window must run into gasket correctly and rest in gasket over entire width.

If necessary, adjust side window. See 51 37 154 ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW .
