54 34 159 Removing and installing left soft top fastener
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COWL PANEL TRIM
- Put down soft top (open)
When replacing the cowl panel closure:
Before removing, mark position of screws to ensure correct alignment during installation.
When replacing the soft top linkage:
Before removing, mark position of the closure to ensure correct alignment during installation.

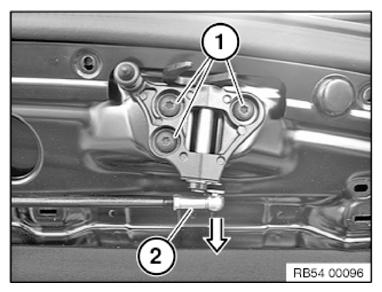

Open the retaining clip and unclip the ball head (2).
Release screws (1).
Installation note:
Replace screws.

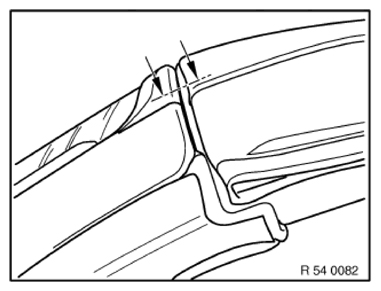

Ideal setting:
Soft top must close flush with cowl panel.
Observe gap dimensions. See 41 00... BODY GAP DIMENSIONS .
