54 34 034 Removing and installing/replacing complete hydraulic system for soft top
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hydraulic circuit remains closed during this operation.
Do not disconnect hydraulic cylinder and hydraulic unit from hydraulic lines.
Do not disconnect hydraulic cylinder and hydraulic unit from hydraulic lines.

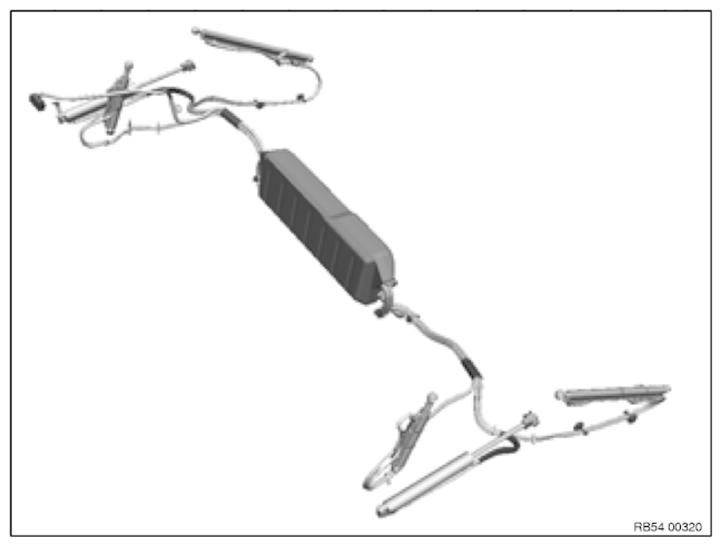

Overview of hydraulic components:
Operations are described in:
- Remove HYDRAULIC CYLINDER for soft top.
- Remove hydraulic cylinder. Refer to 54 34 006 REMOVING AND INSTALLING/REPLACING LEFT HYDRAULIC CYLINDER FOR SOFT TOP COMPARTMENT LID and 54 34 007 REMOVING AND INSTALLING/REPLACING RIGHT HYDRAULIC CYLINDER FOR SOFT TOP COMPARTMENT LID for soft top compartment lid.
- Remove hydraulic cylinder. Refer to 54 34 008 REMOVING AND INSTALLING/REPLACING HYDRAULIC CYLINDER FOR LEFT SOFT-TOP BOW and 54 34 009 REMOVING AND INSTALLING/REPLACING HYDRAULIC CYLINDER FOR RIGHT SOFT-TOP BOW for soft-top bow.
- Remove HYDRAULIC UNIT FOR SOFT TOP DRIVE .
Undo all cable straps and attachment points on the body.
