54 34 008 Removing and installing/replacing hydraulic cylinder for left soft-top bow

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow REPAIR INSTRUCTIONS for hydraulic system

IMPORTANT: Hydraulic fluid may emerge from the disconnected lines and the open connections on the hydraulic cylinder.
Protect components and work area with suitable materials (e.g. cloths).

Open convertible top compartment lid until all hydraulic cylinders are completely extended.

Support soft top compartment lid in SERVICE POSITION

Fig 1: Identifying Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Never lift off ball socket with engaged clamp.
Before installation, grease ball socket if necessary.

Installation note:

Pack grease into two opposite positions in socket.

The grease spreads after installation on the ball pin all round in the ball socket.

Dismantling/installing ball sockets:

Push on clamp in direction of groove with screwdriver
Lift off ball socket from ball pin
Slide clamp back
Fit ball socket on ball stud and snap into place with force

Fig 2: Removing/Installing Ball Sockets With Clip
Courtesy of BMW OF NORTH AMERICA, INC.

Disassemble ball heads (1) as described above.

Cut open cable strap (2).

Installation note:

Replace cable strap (2).

Fig 3: Identifying Ball Heads And Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnecting hydraulic lines from cylinder:

Push retainer (1) open at the top and bottom of the cylinder using a screwdriver.

Detach hydraulic lines (2).

IMPORTANT: Protect separation points (lines and cylinder) against dripping fluid, e.g. with a cleaning cloth.
Observe hose markings.

Unclip hall effect sensor (3) and remove it.

Installation note:

Ensure correct engagement of the hall effect sensor latch mechanism.

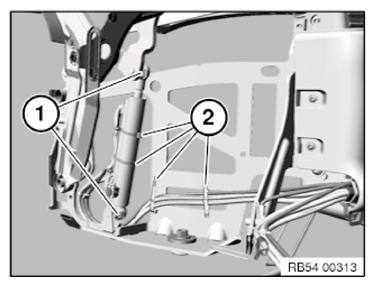

Fig 4: Detaching Hydraulic Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:
